Recycling Equipment
of solar panels are currently recycled globally.
is the typical lifespan of a solar panel.
of materials, like glass, can be reclaimed and reused.
Solar Panel Recycling Plant
Specification
| Model | Power | Size (mm) | Front-End Capacity | Back-End Capacity |
| APEX-S120 | 240 kW | 45000 × 4700 × 4200 | 120 pcs/h | 800 kg/h |
Solar panel components include high-quality glass, an aluminum frame, polymers, silicon, copper, and silver paste (for the printed conductors on each cell), all of which can be successfully recycled by our equipment. The recycling rate is over 95%. The image above shows the equipment configuration of our recycling production line.
- Aluminum frame removal rate >99%, recycling purity >98%.
- Glass removal rate: 85-95%; recovery purity: >90%.
- The recovery rate of metal particles (copper) is >95%, and the recovery purity is >95%.
- Plastic powder recovery rate >95%, recovery purity >90%.
- The silicon recovery rate is 95%, and it appears in the form of a mixture of plastic powder, glass powder, etc., with a silicon content of approximately 45%.

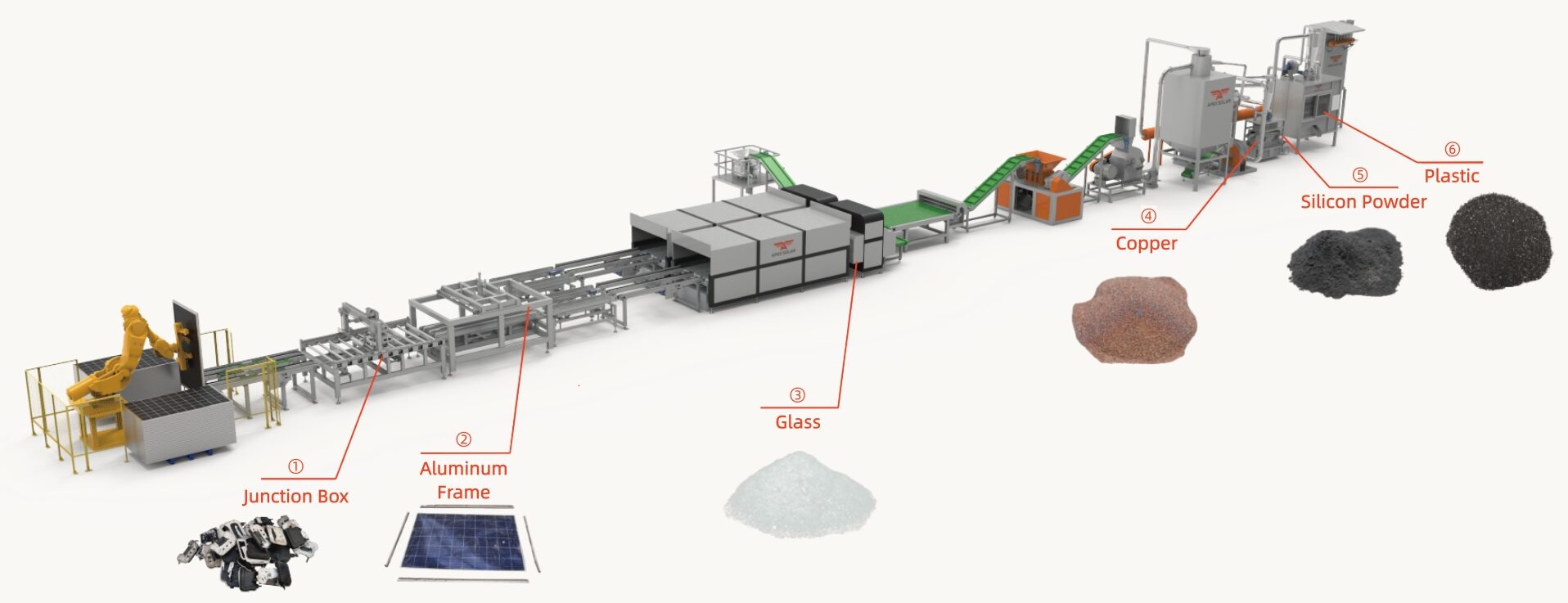

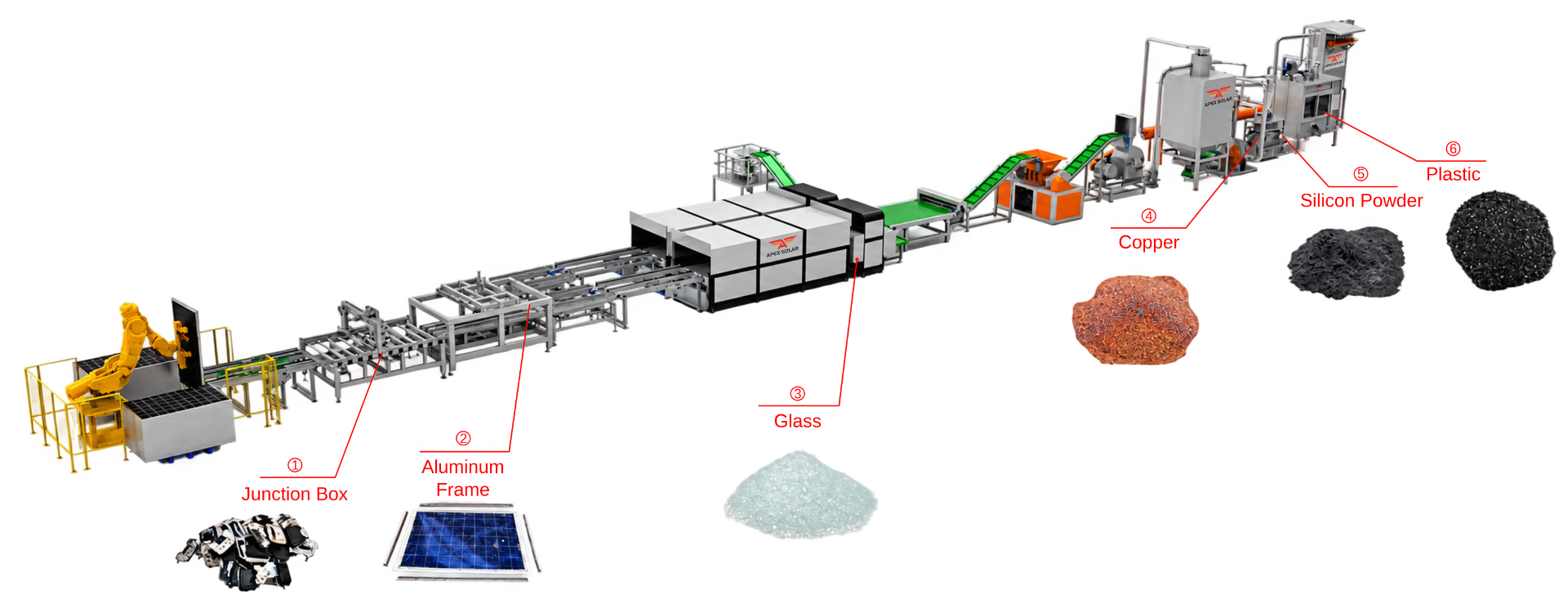

Equipment Process Flow
A high-value-added, fully automated photovoltaic module environmentally friendly and precise dismantling and physical purification process chain.
Through a series of automated precision processes, high-value materials are fully recovered to achieve resource sustainability
Key Technical Capabilities
Our proprietary automated systems and eco-compliant sorting equipment.
Efficient Component Disassembly Technology
Achieve precise separation of component structuresenhance recovery efficiency and purity.
Multi-Material Sorting Technology
Enabling precision sorting of materials such as glass, silicon, and metals.
Automated Processing
System
The entire line operates automatically, reducing labor costs and enhancing stability.
Environmentally Friendly Treatment Process
The entire process complies with environmental standards, minimizing secondary pollution.
Every department in our organization contributes to building a greener, more sustainable future and takes full responsibility at every step.
Each division brings a unique focus to the broader mission of promoting a greener future through cutting-edge waste reduction and resource recovery initiatives.
